Timber Van Kits

20 Gal. Water Tank for Camper Vans

20 Gal. Water Tank for Camper Vans

Regular price $450.00 USD
Regular price Sale price $450.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

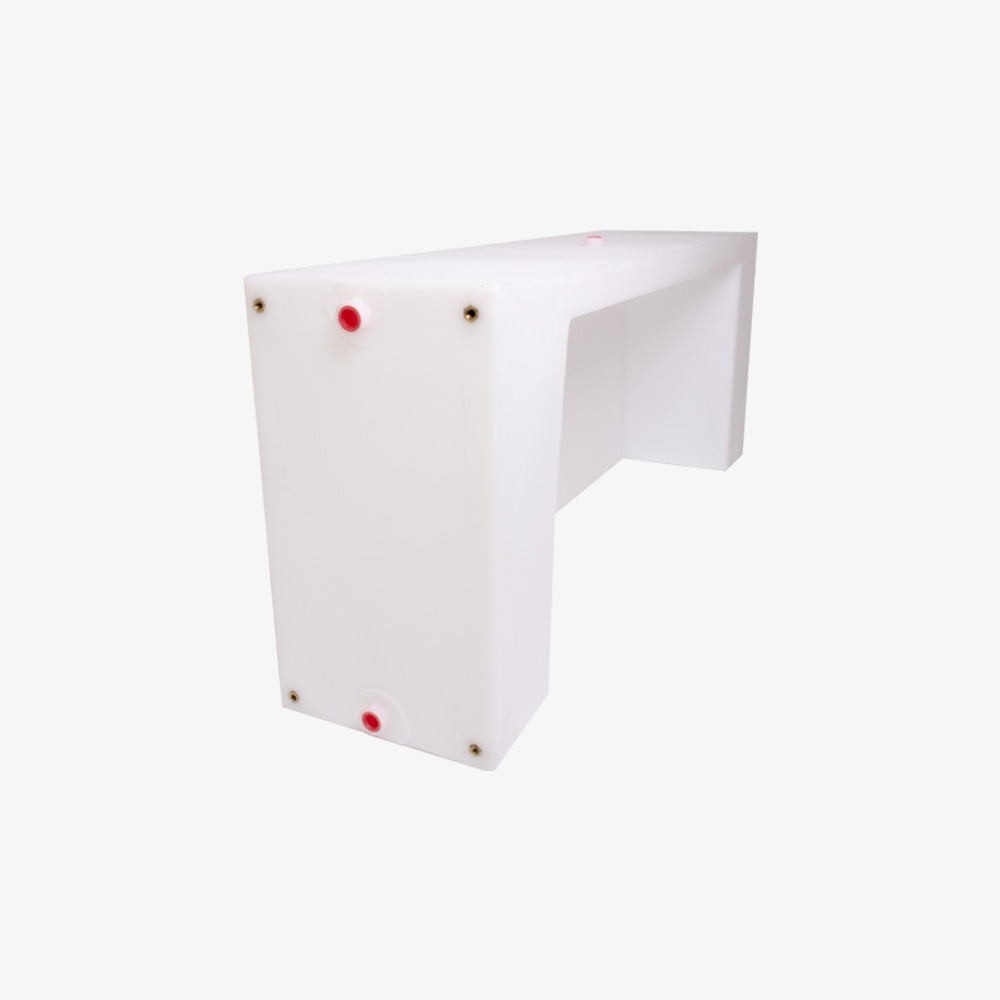

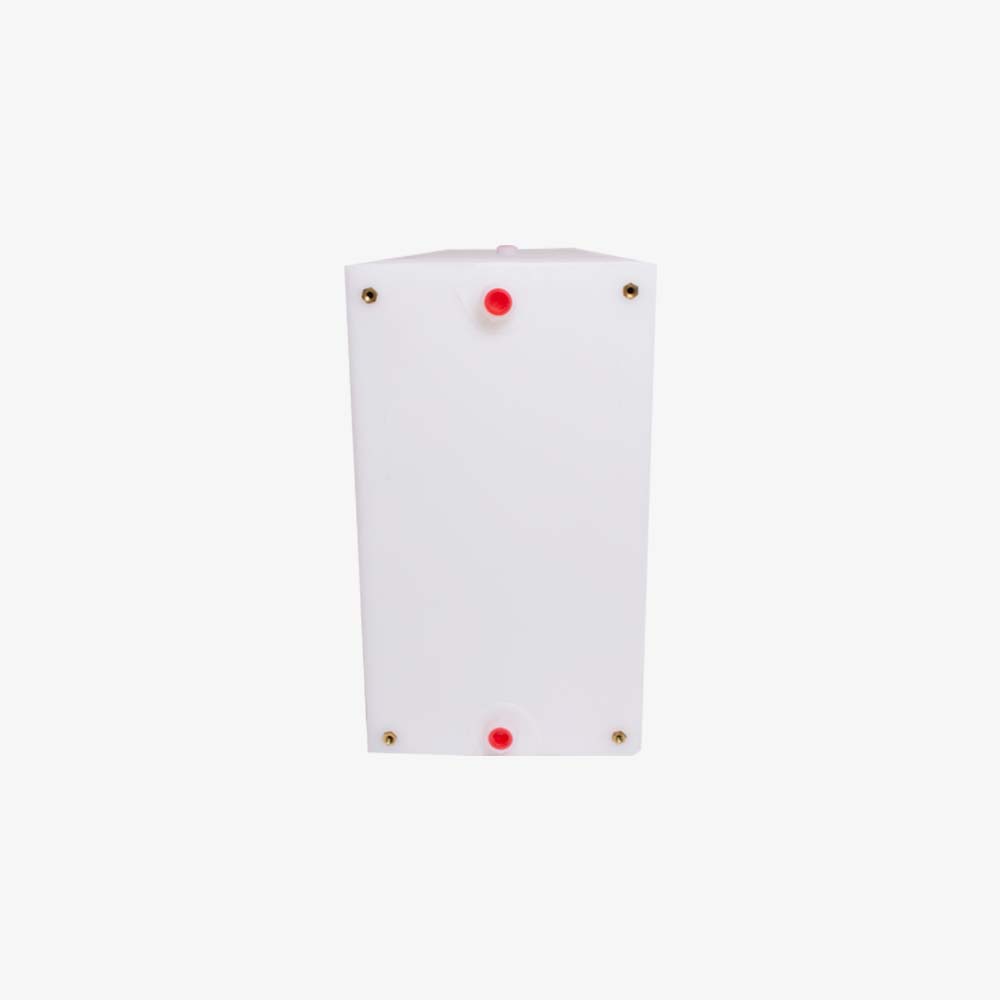

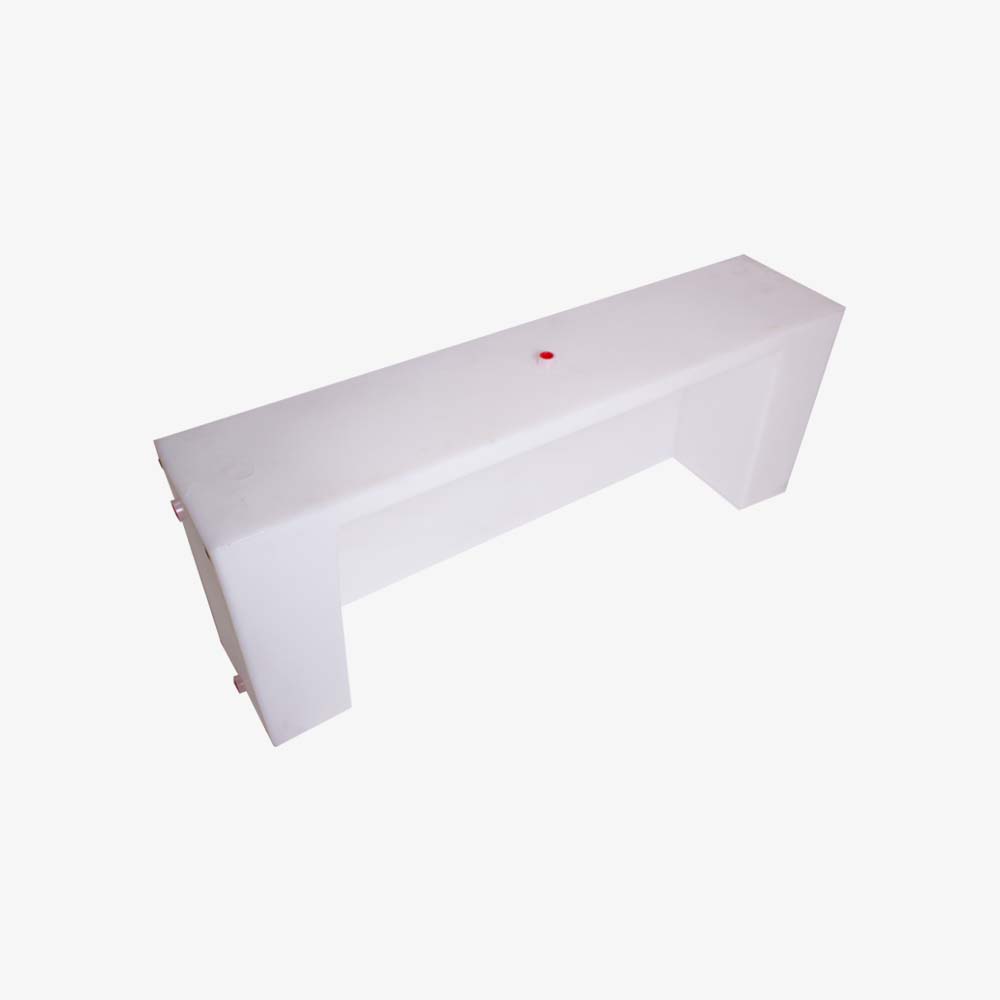

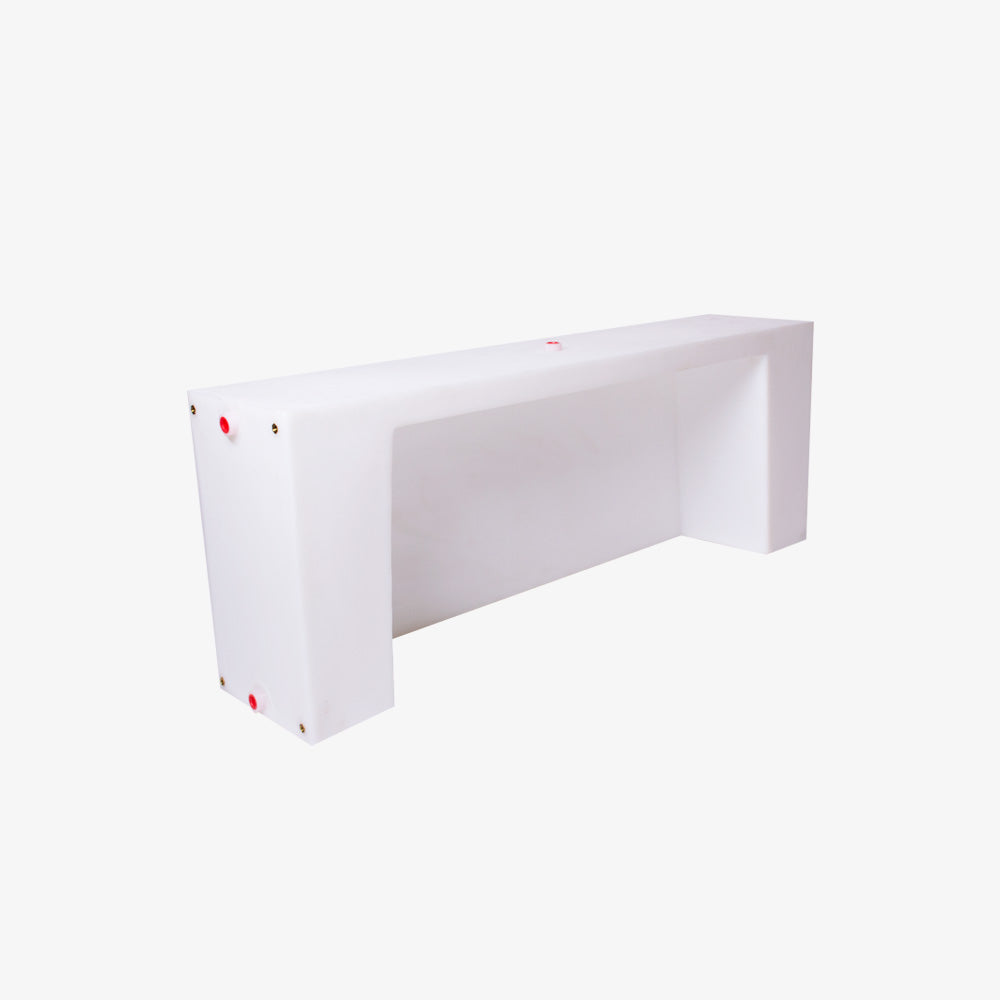

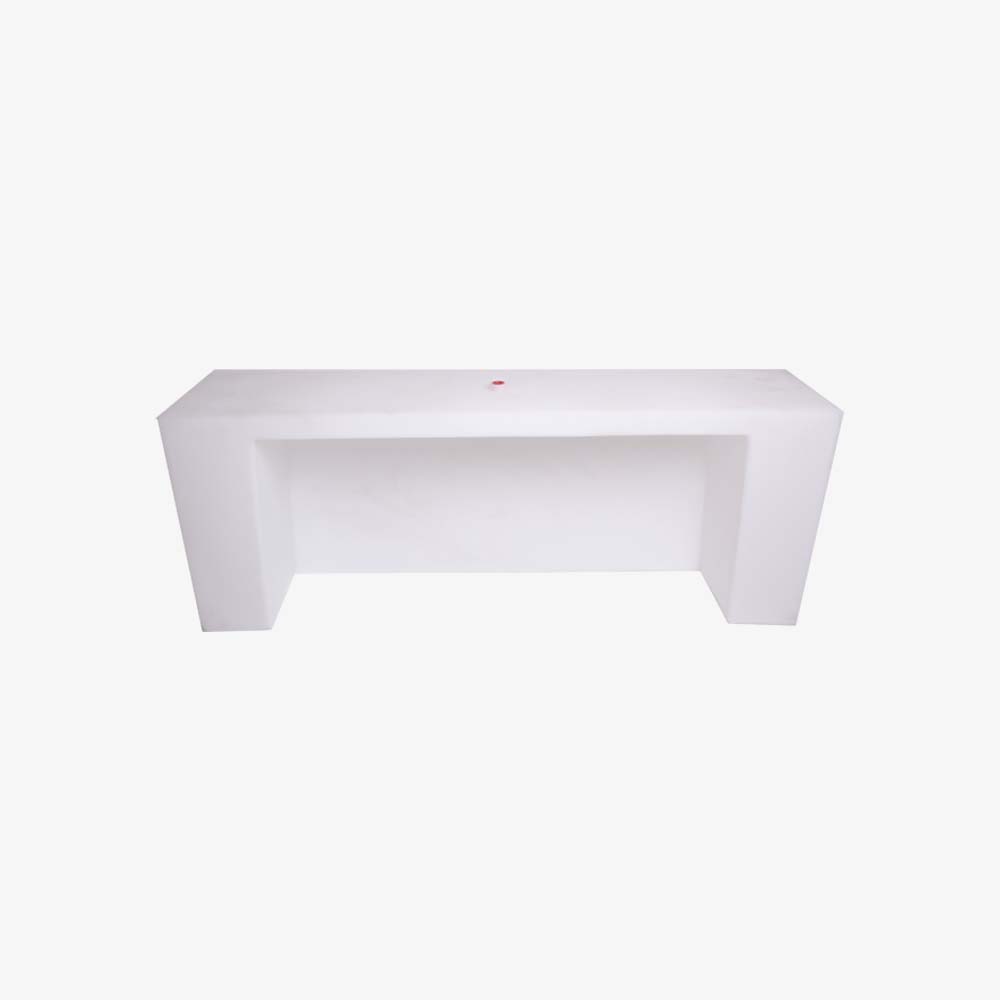

This 20-Gallon Wheel Well Water Tank is designed to save interior space while increasing safety by distributing weight onto the rear tires for optimal traction. The design is also naturally baffled to decrease water sloshing and can be easily installed in Sprinters, ProMasters, and Transits.

***Tank may have excess plastic shards on the inside from the manufacturing process. We recommend rinsing out the tank before installation to ensure cleanliness.***

Features

  • 20 Gallon capacity
  • BPA-Free
  • NSF/ANSI 61 Certified
  • Reversible: For both driver and passenger sides
  • Naturally baffled to decrease water sloshing
  • Centers weight over the axle

Fittings

  • 1/2 in FNPT Fittings on both ends of the tank and one on top
  • Threaded inserts on both ends of the tank (5/16"-18)
  • Inlet and outlet on front and back for universal installation on either passenger or driver side

Compatibility

  • Compatible with Sprinters, Transits, and ProMasters
  • Not compatible with dually trucks

Kit Includes

  • 1 – Wheel well water tank
  • 4 – Mounting brackets

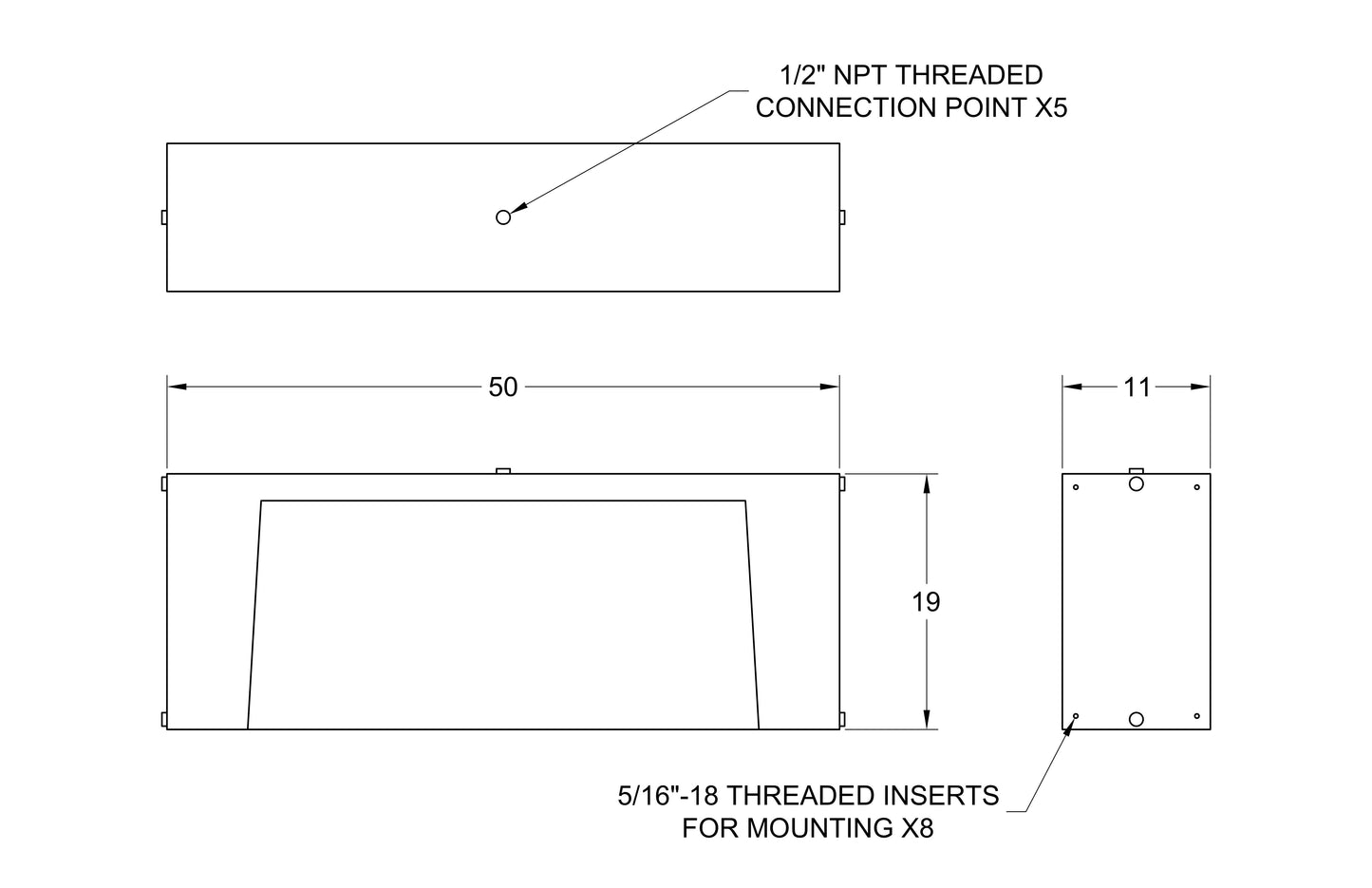

Specifications

  • Capacity: 20 gallons
  • Weight: 37 pounds
  • Length: 50 inches
  • Height: 19 inches
  • Width: 11 inches

Shipping

  • Weight (Packed): 40 pounds
  • Box Dimensions: 50 x 19 x 11 inches
  • Processing time: 1 to 5 days
  • Shipping time: 1 to 5 days
  • Free Shipping
