Timber Van Kits

Structural Assembly for Sprinter Van Panels

Structural Assembly for Sprinter Van Panels

Regular price $395.00 USD
Regular price Sale price $395.00 USD
Sale Sold out
Shipping calculated at checkout.


Our enhanced structural assembly kit for Sprinters simplifies the installation of van panels, ensuring a clean, tight, and professional finish. This updated version has been designed for a dual purpose allowing for the factory wiring harness to be run behind the structure without rerouting it, and at the same time it creates a smooth corner when installing your paneling. Experience improved efficiency and a polished result with our latest kit.

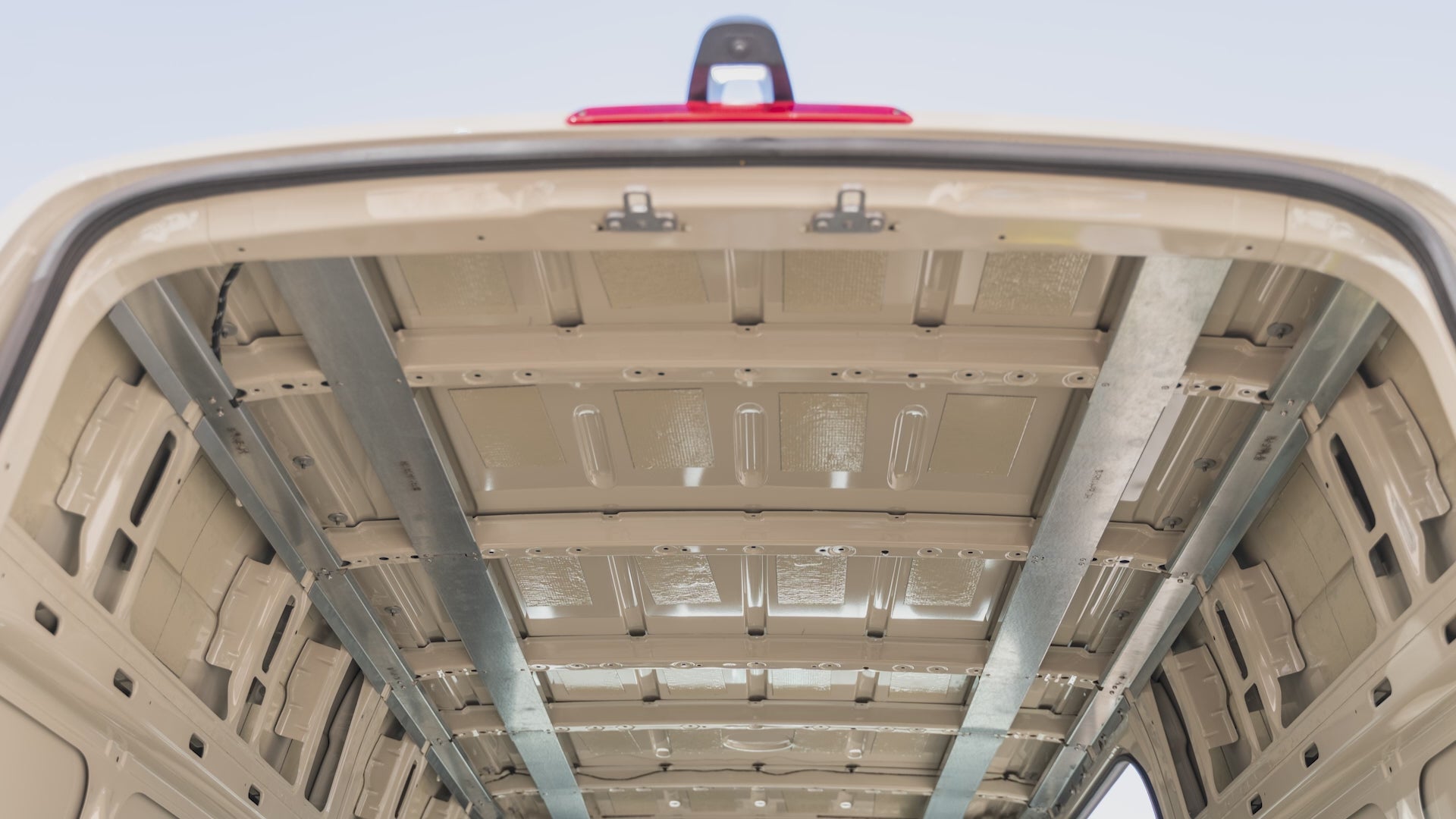

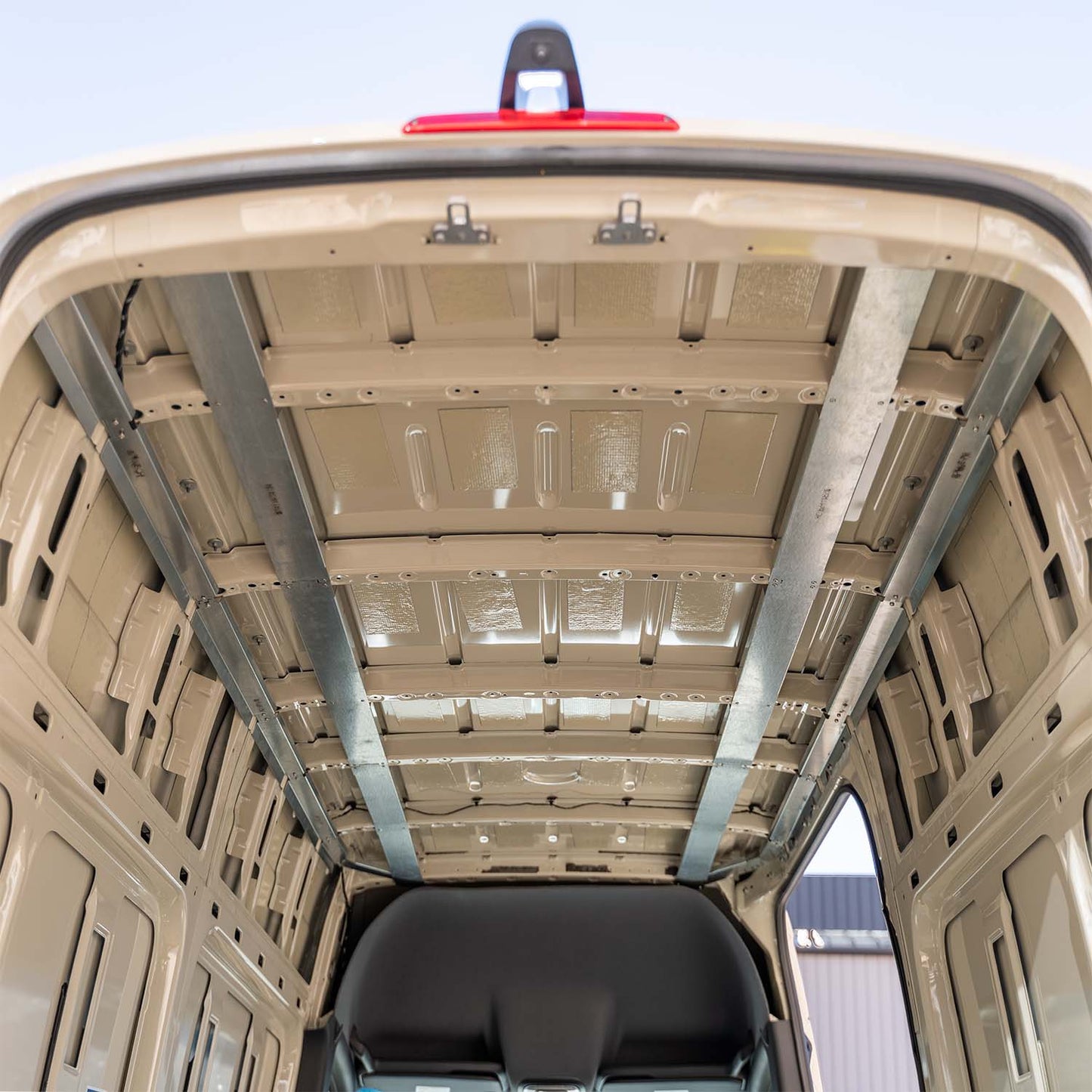

  • Steel pieces to outline the top of the passenger and driver sides to create a straight line around the whole van.
  • Creates easier connections for panels, overhead cabinetry and wiring harness.

Kit includes

  • 144" High Roof includes 6 structural pieces
  • 170" High Roof includes 8 structural pieces


  • Compatible with sprinter vans 144" High Roof, 170" High Roof
  • Can work with Overhead Cabinet Structural
  • Roof based on which you order. Not interchangeable.
  • Does not work with factory drop slider door stop


  • Processing time: 1-5 days
  • Shipping time: 1-5 days
  • Free Shipping

Packing List / Diagram

144" Sprinter Structural Assembly

170" Sprinter Structural Assembly
