DIY Headliner Shelf Kit for before 2020 Transit Vans

Description

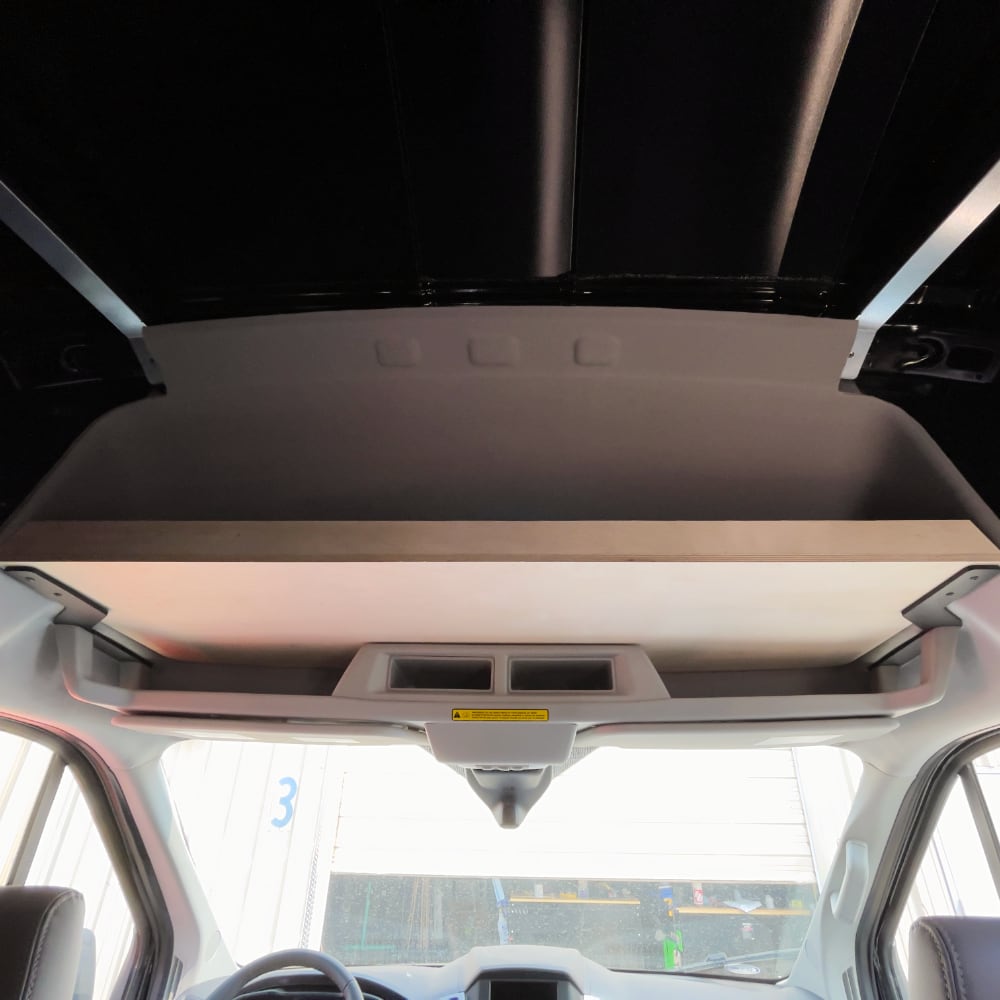

The Transit Headliner shelf kit is designed to fit all high roof Ford Transit models. This shelf allows you to add storage space by utilizing the unused area above the driver and passenger seats. It comes ready for you to paint or upholster according to your preferences.

PLEASE READ

Wood surfaces in this product may exhibit natural variations in grain, color, and texture, as well as minor imperfections. Additionally, round wood patches may be present as a standard part of the manufacturing process to maintain quality and durability. These characteristics are inherent to natural wood and do not affect the product’s performance or integrity.

***Some components/ hardware may not look exactly like the photos***

Please note that exterior-grade finishes or Rubio Monocoat oils are required for our products. The temperatures and moisture levels inside vehicles can fluctuate significantly, so it is important to use the appropriate products to finish these components. If you have any questions, please do not hesitate to contact us.

Find instructions with QR codes sent with shipment, documents attached at the bottom of this page, or check out each individual product's page on our Website to access instructions faster.

Features & Compatibility

• Tall lip to prevent items from falling off
• Powder-coated aluminum brackets
• Made from tough Baltic birch plywood
• Compatible with all HIGH ROOF Ford Transit Vans before the year 2020
• You must have the plastic visor storage option in your van for this shelf to have the two attachment points for the bracket. If you do not have a plastic storage area, your van will not have anywhere to attach the brackets for this shelf.
• Not compatible with Transit Connects

Shipping

• Processing time: 2 to 5 days
• Shipping time: 1 to 4 days
• Packing: The kit is flat packed and shipped to you with all hardware included.
• Weight (Packed): 14 pounds
• Box Dimensions: 55 x 24 x 5 inches
• Free Shipping

Installation

• Loosen the 4 bolts holding in the visor grab handle on both the driver and passenger sides. The visor will stay attached and does not need to be removed.
• Slide the included black brackets between the headliner and the grab bar plastic mounts on both the driver and passenger sides. The brackets are the same but can only fit in one way for the driver and mirrored for the passenger.
• Reinstall the 4 bolts re-securing the headliner grab bar and the shelf brackets.
• Slide the assembled headliner shelf into position on top of the brackets.
• Use the provided wood screws to secure the headliner shelf to the brackets.
• Transit Headliner Before 2020 Packing List

Kit Includes

• CNC Cut Baltic Birch Plywood
• 2 Brackets
• 4 Screws

Specifications

• Weight: 13 pounds
• Max Length: 52.5 inches
• Height: 2.5 inches
• Max Width: 20.75 inches
