Timber Van Kits

20 Gallon Water System with Slim Tank

20 Gallon Water System with Slim Tank

Regular price $505.00 USD
Regular price Sale price $505.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

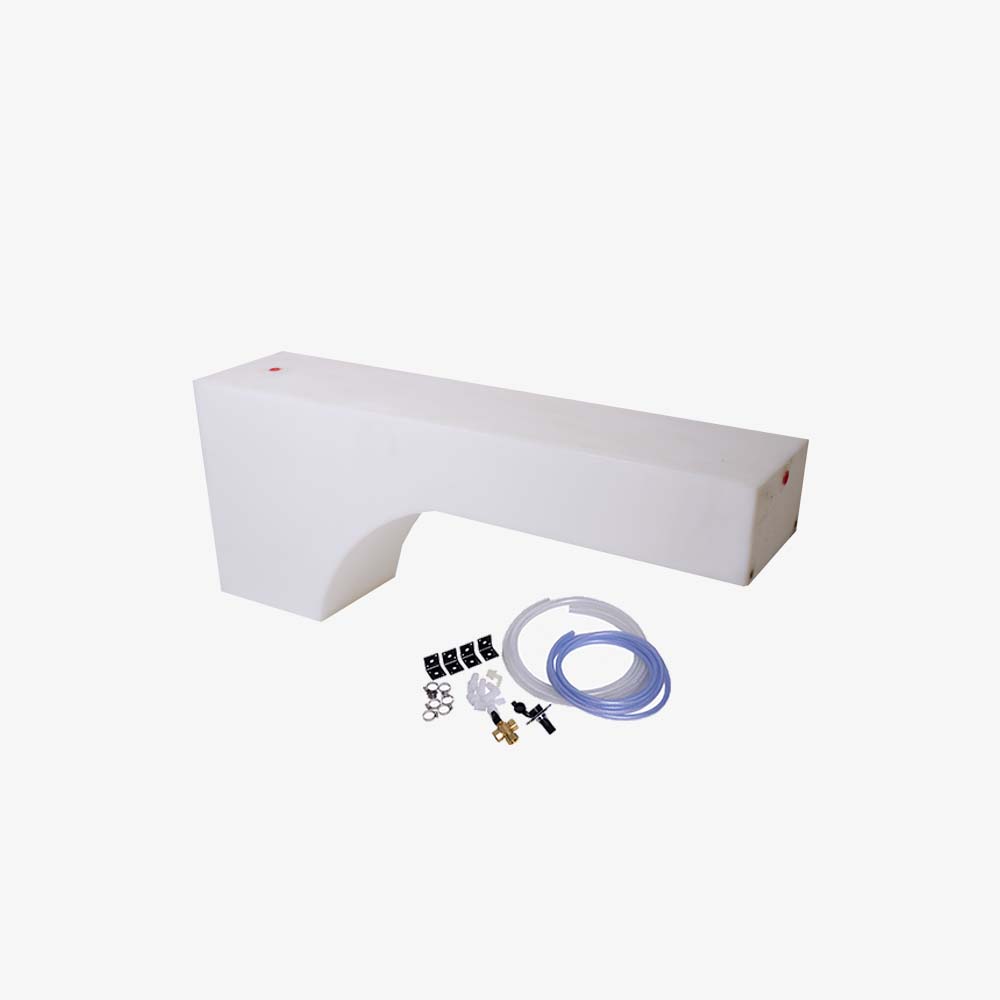

This water system for camper vans comes with everything needed to set up your wheel well water tank and connect it to your pump. The Slim wheel well water tank has a 20-gallon capacity and is compatible with Sprinters and Transits.

***Tank may have excess plastic shards on the inside from the manufacturing process. We recommend to rinse out the tank before install to be sure.***

Features

  • Free Shipping
  • 20-gallon capacity
  • BPA-Free
  • NSF/ANSI 61 Certified
  • Reversible: For both driver and passenger sides.
  • Naturally baffled to decrease water sloshing
  • Centers weight over the axle
  • 1/2 in FNPT Fittings on both ends of the tank and one on top.
  • Threaded inserts on both ends of the tank (5/16"-18)

Compatibility

  • Compatible with Sprinters and Transits.

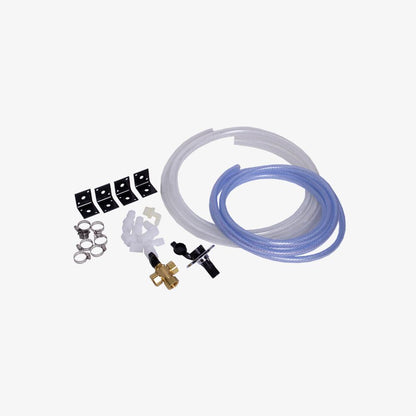

Kit Includes

  • Slim wheel well water tank
  • 12 feet of 3/8" ID braided vinyl tubing
  • 6 feet of 5/8" ID braided vinyl tubing
  • 1 - 3 way brass valve
  • 1 - garden hose filler
  • 4 - mounting brackets
  • 1 - 3/8" barb elbow x 1/2" NPT
  • 2 - 5/8" barb elbow x 1/2" NPT
  • 2 - 5/8" barb x 1/2" NPT
  • 2 - 1/2" NPT end caps
  • 6 - 1" hose clamps
  • 1 - 1/2" hose clamp

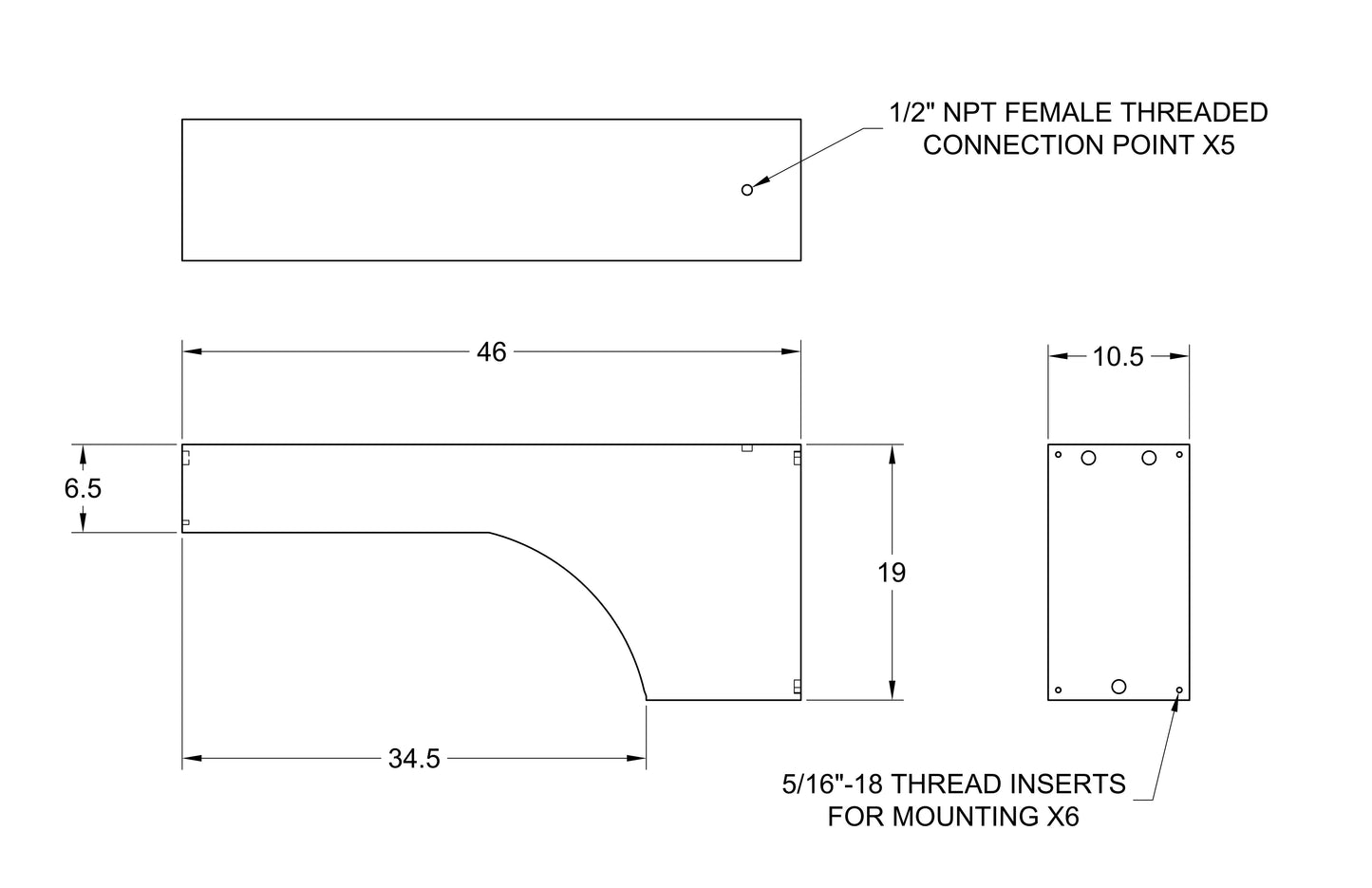

Specifications

  • Capacity: 20 gallons
  • Weight: 37 pounds
  • Length: 46 inches
  • Height: 19 inches
  • Width: 10.5 inches

Shipping

  • Weight: 40 pounds
  • Box Dimensions: 59 x 11 x 19 inches
  • Processing time: 1-5 days
  • Shipping time: 1-5 days
  • Free Shipping
