Bed and Wheel Well Cabinets for Transit Vans

Description

This easy-to-assemble Wheel Well Cabinet Bed System Kit is designed specifically for adventurous camper-van usage. You have the option to add a custom-designed mattress that fits perfectly on the bed frame and allows for stacking when the bed is contracted. The wheel well cabinets are very versatile and designed to accommodate wheel well water tanks and portable power stations. Ready to paint, stain, or finish however you like.

PLEASE READ

ALL OUR WOOD PRODUCTS COME AS UNFINISHED NATURAL WOOD. WARPING DUE TO MOISTURE AND HEAT IS COMMON! IF CHOOSING TO STAIN AND LEAVE AS UNCOVERED WOOD, KEEP IN MIND THAT ALL WOOD PRODUCTS WILL HAVE GRAIN, COLOR, AND TEXTURE VARIATIONS. REQUIRES SANDING.

Please note that exterior-grade finishes or Rubio Monocoat oils are required for our products. The temperatures and moisture levels inside vehicles can fluctuate significantly, so it is important to use the appropriate products to finish these components. If you have any questions, please do not hesitate to contact us.

Find instructions with QR codes sent with shipment, documents attached at the bottom of this page, or check out each individual product's page on our Website to access instructions faster!

Features

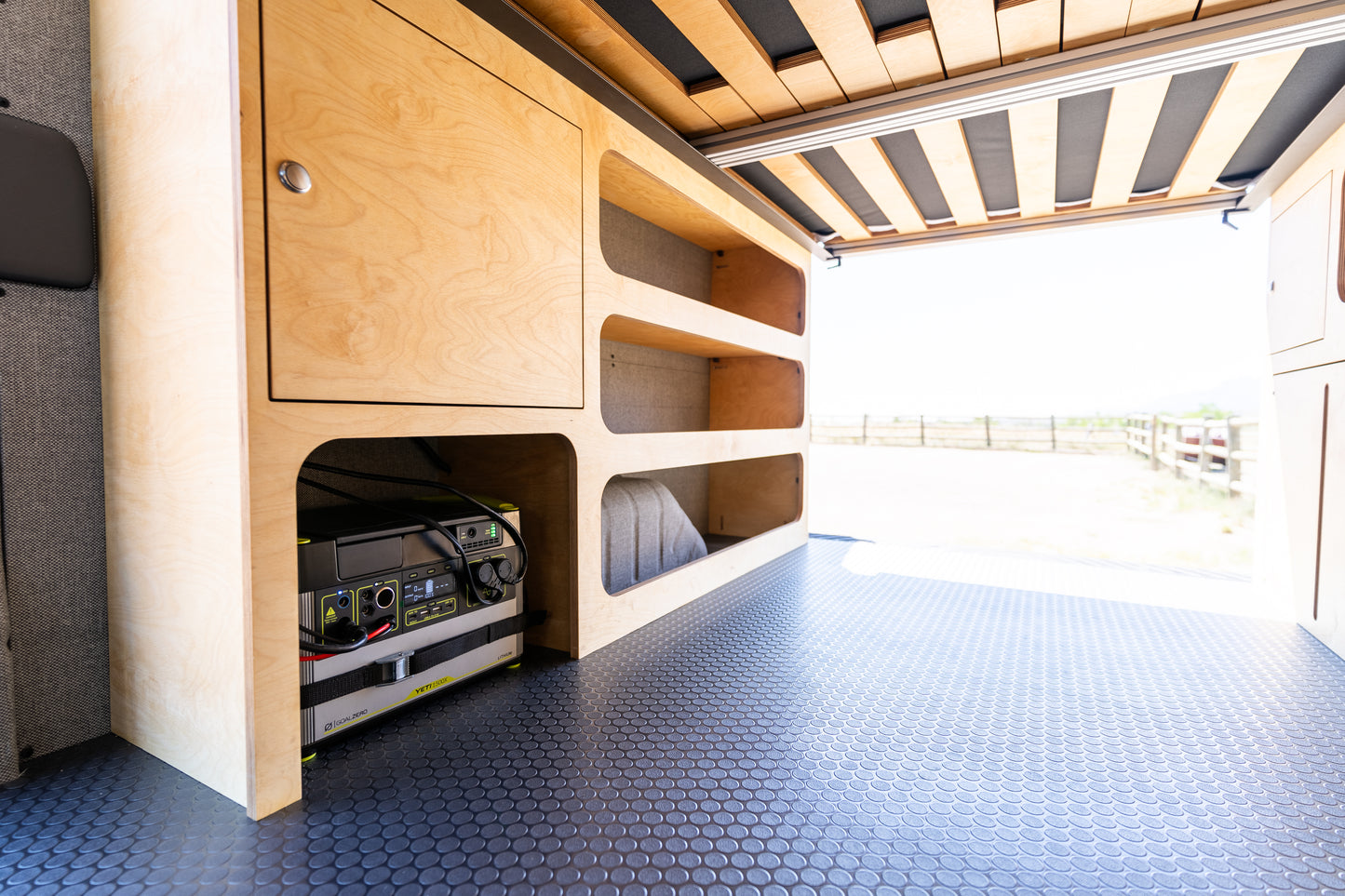

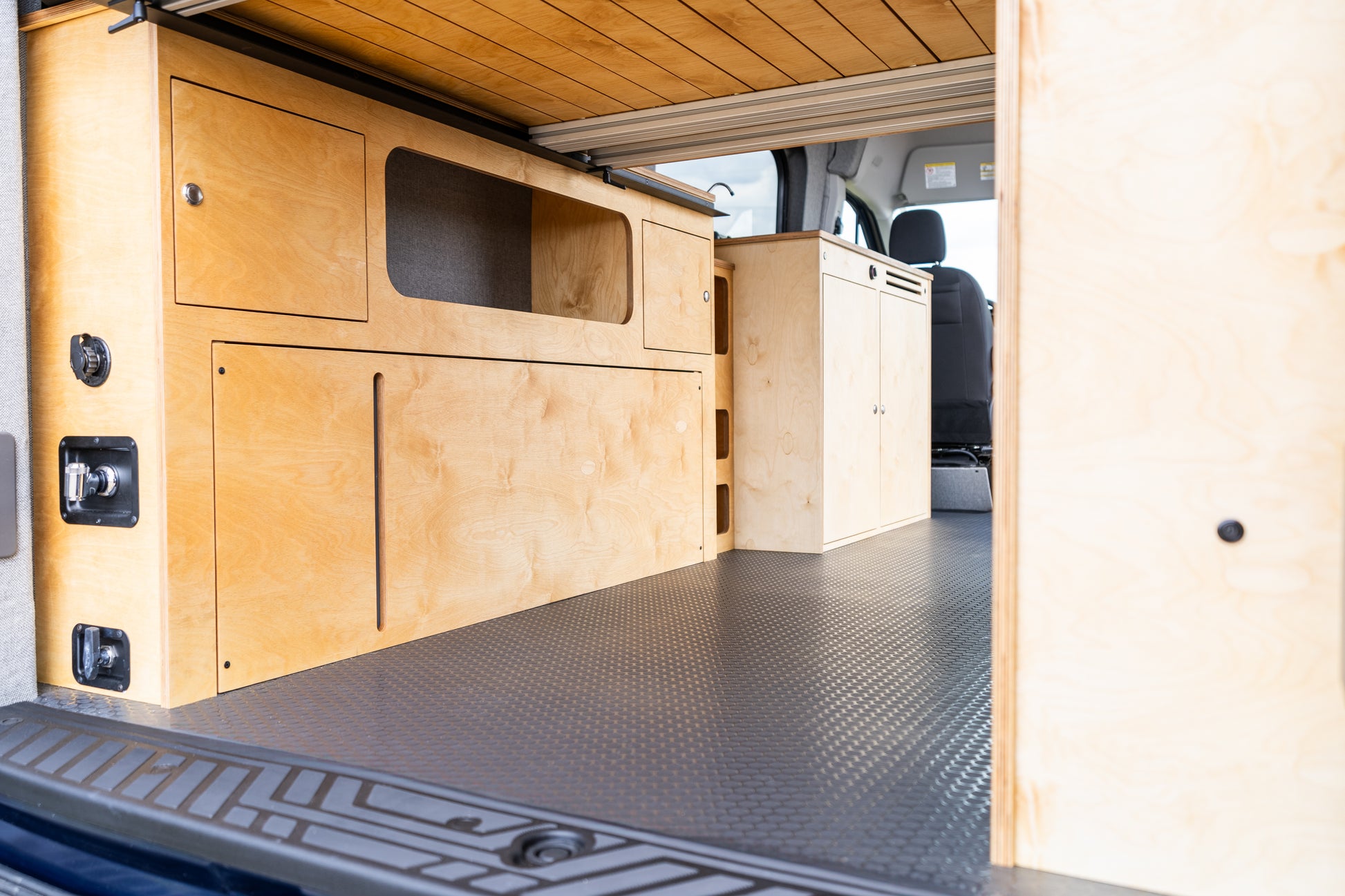

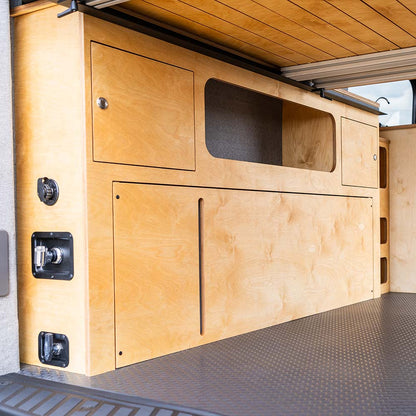

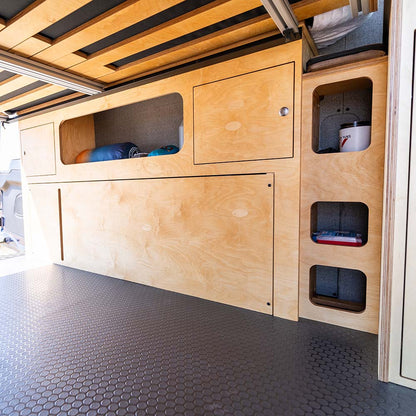

• Wheel Well Cabinets: Two wheel well cabinets designed to fit a wheel well water tank and other systems. Includes 3 compartments with latching doors and multiple open cubbies for storage.

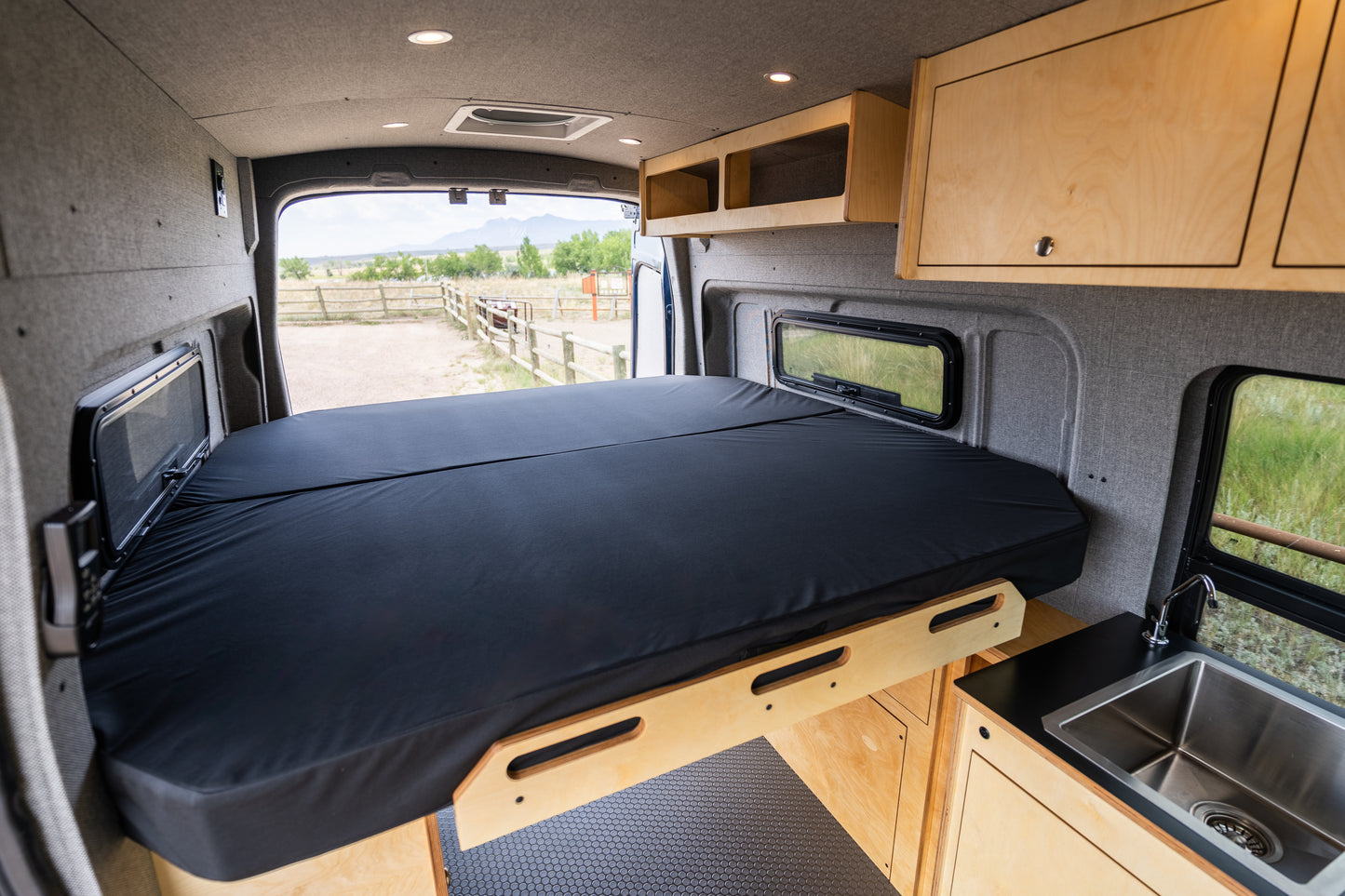

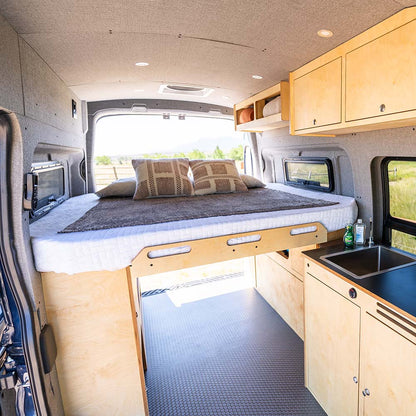

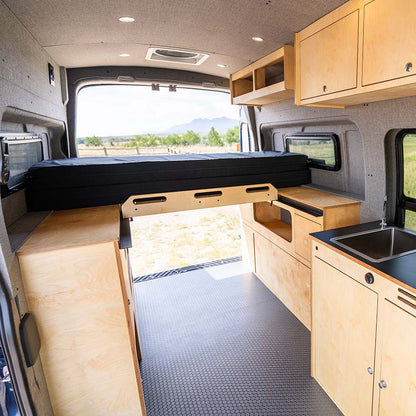

• Bi-Slide Bed Frame: Half of the bed is designed to slide into the other half, creating more living space when the bed is not in use.

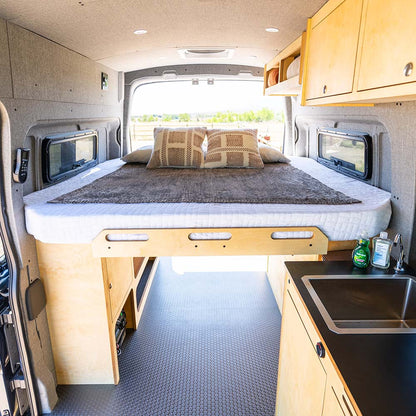

• Mattress: 5” thick, low profile, and includes three soft upper layers with a cool gel memory foam insert. Specifically made to fit our Bi-Slide bed frame for ultimate comfort and durability.
• Highest Quality Components: Made from 3/4" high-quality Baltic Birch Plywood with a real wood finish. Marine rim latches and Blum hinges are designed for serious off-road use, with soft-close functionality as standard.

Compatibility

• Designed to fit Ford Transit 148" and 148 EL" High Roof vans.
• It is critical that the space between the two wheel well cabinets is within 41.5 inches and 43.5 inches.

Kit Includes

• Wheel Well Cabinets:
• CNC Cut 3/4" Baltic Birch Plywood Pieces
• 6 x Door Hinge
• 6 x Hinge Plate Mount
• 3 x Door Latch
• 28 x #7 x 5/8'' Flathead
• 18 x #8-16 x 3/4'' Trusshead
• 6 x #8-16 x 1/2'' Trusshead
• 7 x #8 x 3/4" SS Flathead
• 79 x Cabinet Fastener
• 12 x Shelf Bracket
• 10 x Floor Screw
• 24 x Wall Screw
• Bi-Slide Bed:
• CNC Cut 3/4" Baltic Birch Plywood Pieces
• 1 x Mattress
• 1 x Front Bislide half
• 1 x Rear Bislide half
• 2 x Kick plate
• 5 x 1.5" 8020
• 1 x Bed Rail Driver
• 1 x Bed Rail Passenger
• 36 x Bed - T-nut 10-32 Flathead Phillips
• 36 x Bed - T-nut 10-32
• 14 x 1/4" - 20 Rail Nylock Nut
• 14 x 1/4" - 20 Flathead 1.25" Black Rail Fastener
• 14 x 1/4" - 20 Washer
• 14 x Truss Head 1" Screws
• 30 x Slotted Washers
• 4 x Bed Tab

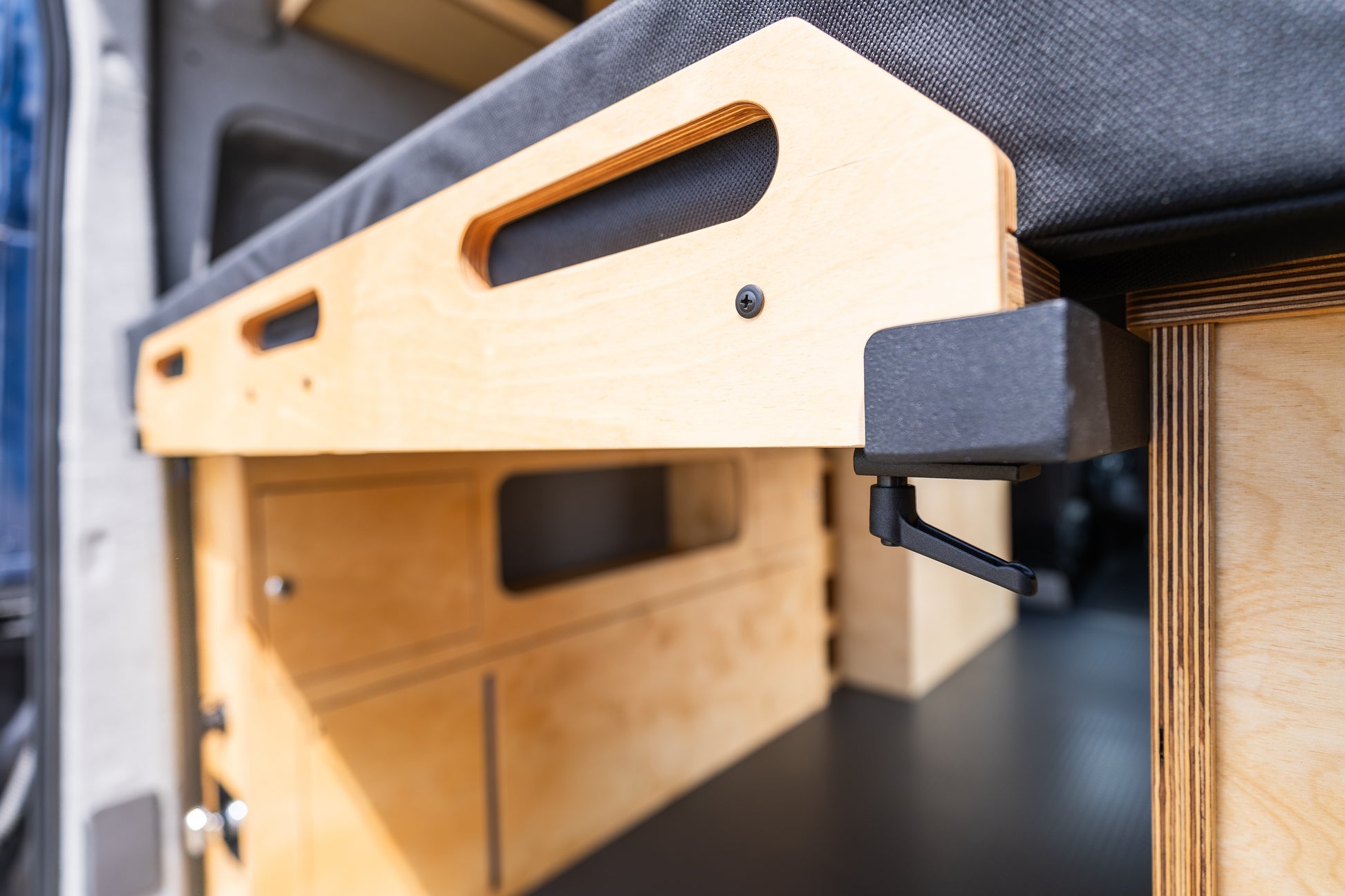

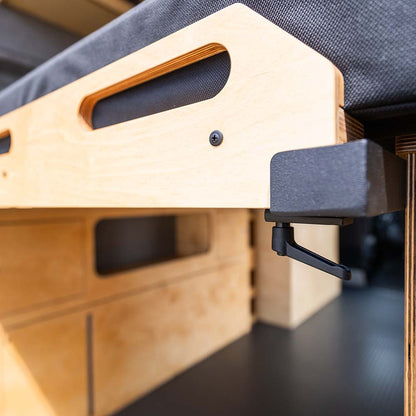

• 4 x Locking Handle

Specifications

• Length: 66 inches
• Height: 38.12 inches
• Width: 67.625 - 69.625 inches

Shipping

• Processing time: 4 to 12 days
• Shipping time: 3 to 8 days
• Packing: The kit is flat-packed and freight-shipped to you with all hardware included on the pallet.
• Weight (Packed): 400 pounds
• Pallet Dimensions: 4' x 6' x 10"
• Free Shipping

Returns

• Return Policy

Instructions & Packing List

• • Bed and Wheel Well Cabinet Instruction
  • Bi-Slide Bed Dimensions
  • Passenger WWC Dimensions
  • Driver WWC Dimensions
  • DIY Mattress Dimensions
